Jacob's Ladder


Labels:


Images









Labels:


Circuit Diagram






Labels:


Circuit Diagram


Labels:


Final testing

Labels: ,


ELEGON_prototype_final posting


'{$STAMP BS2} '
{$PBASIC 2.5}
INPUT 0 'set pin 0 as input INPUT
1 PIR1
PIN 0 ' I/O Pin For PIR Sensor PIR2
PIN 1 counter VAR Byte ' Trip Counter

DEBUG CLS ' Clear DEBUG Screen
FOR counter=60 TO 0 'Wait 60 Seconds For PIR Warm-Up
DEBUG HOME,"WARMING UP:", DEC2 counter
PAUSE 1000'Display Counter Every Second
NEXT
counter = 0 'Clear Counter Variable
DEBUG HOME, "WAITING..." ' Display Waiting Message

Main:
DO
IF PIR1 = 1 THEN 'Motion Detected?
counter = counter + 1 ' Update Trip Counter
HIGH 15 ' power to flexinol wire
PAUSE 4000
HIGH 14
PAUSE 4000
HIGH 13
PAUSE 4000
DEBUG HOME, "TRIPPED...", DEC3 counter
DO:LOOP UNTIL PIR1 = 0 'Wait For PIR To Clear
DEBUG HOME, "CLEARED...", DEC3 counter
LOW 15 ' turn off power to flexinol
PAUSE 5000
LOW 14
PAUSE 5000
LOW 13
PAUSE 5000

ENDIF

IF PIR2 = 1 THEN 'Motion Detected?
counter = counter + 1 ' Update Trip Counter
HIGH 13
PAUSE 4000
HIGH 14
PAUSE 4000
HIGH 15 'power TO flexinol wire
PAUSE 4000
DEBUG HOME, "TRIPPED...", DEC3 counter
DO:LOOP UNTIL PIR2 = 0 'Wait For PIR To Clear
DEBUG HOME, "CLEARED...", DEC3 counter
LOW 13
PAUSE 5000
LOW 14
PAUSE 5000
LOW 15 ' turn off power to flexinol
PAUSE 5000
ENDIF
LOOP


Labels:


team 500s - Antagonist Aperture

ANTAGONIST APERTURE.

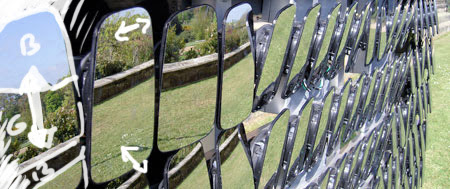

It performs. It provokes. Antagonist Aperture is a shutter that is responsive to sunlight and movement, operating as a sun shading device and a provoking mediator between the individual and their view. The aperture is closed when the sun is bright, yet opens as a person approaches. A field of Apertures produces provoking views by exploiting feedback from the physical movement along the length of the material actuator. During dark hours of the day the aperture is open, yet may close upon the approach of a person to hide undesirable views or to provoke engagement with the boundary of the building. In this way, walls become active participants – antagonists – in the experience of its users.

So why is responsive kinetic architecture important? Responsive kinetic architecture can mediate between multiple inputs and outputs. In our case it allows the aperture to act as both a window and sunshade without reducing the quality of each performance. Responsive kinetic architecture also allows performance in unexpected and engaging ways by provoking its user or drawing certain views/sequence of views that allow for a designed relationship between interior and exterior.







Labels:


Monday, November 26, 2007

ELEGON_prototype_07_postings



use TWO FLEXINOL on one panel to amplify movement

The new prototype applied one more flexinol in the same panel. So that when we can hang the whole structure onto the roof, the space movement created at the human level will be amplified .

The diagram below shows our final application, which is a movable wall that creates a private space outside Room 300 Avery Hall. So essentially, a sensor would detect a person's movement, while he enters the space and triggers the wall to open, letting the person into the space. The second group of sensors detect the movement of the person after he sits down, triggers the wall to close, and creates an intimate space.


Labels:


Saturday, November 17, 2007

INSPIRATION

Aether Architecture
Aelph Reorganizing Vision



http://www.aether.hu/aleph-reorganizing-vision

Tuesday, November 13, 2007

Liquid Crystal panel ( links)

Experiment 1:
http://es.youtube.com/watch?v=c9CyBRzalOI
Experiment 2:
http://es.youtube.com/watch?v=hK4b_OQ5rHw
http://es.youtube.com/watch?v=qS5zEGKd1bQ
Polarizers:
http://es.youtube.com/watch?v=ISpsQDgYSz8
Architecture:
http://es.youtube.com/watch?v=IrEvw409gKE

Jacobs Ladder

Jacobs Ladder Midterm Prototype

Ratcheting Mechanism
http://www.youtube.com/watch?v=Aqv7mP17SK8

The Ladder
http://www.youtube.com/watch?v=SZQfhrovv1Y

Labels:


inspiration


Labels:


more applications


Labels:


SEAGY- Responsive Acoustic Surface
















http://www.youtube.com/v/UaM2Qpr1tAk
http://www.youtube.com/v/luOeq-z72JY

Labels:


Team 500s - Aperature open/close

video #1

video #2

Labels:


ELEGON_prototype_06_postings










Team: Anond Adrian Arunsmith, Esther Chu, Gao Tian, Phuttipan Aswakool, Tao Liu

Labels:


ELEGON_concept




Team: Anond Adrian Arunsmith, Esther Chu, Gao Tian, Phuttipan Aswakool, Tao Liu























Labels:


Monday, November 12, 2007

Synergistic Surface - video



Team : Hosung Chun(Joe), Kristjan Donaldson(Chip), Eri Pontikopoulou, Irmi Reiter, Monica Trejo

Synergistic Surface Midterm






Team : Hosung Chun(Joe), Kristjan Donaldson(Chip), Eri Pontikopoulou, Irmi Reiter, Monica Trejo

Prototype 6 - 500s






















Labels:


Jacob's Ladder

Jacob's Ladder ::: Kinetic Movement
Amanda Brookins :: Ashley Hanrahan :: Julia Hoins :: Tommy Manuel :: Zachary Colbert






Labels:


Jacob's Ladder Trials

Jacob's Ladder ::: Kinetic Movement
Amanda Brookins :: Ashley Hanrahan :: Julia Hoins :: Tommy Manuel :: Zachary Colbert


In order to get the 180 degree rotation needed to flip the first panel of the ladder gears will be used. The following movies show the trial processes to get the prototype functioning.

full length model
http://www.youtube.com/watch?v=AMBcJfxI7Kw
need a track for the tooth?
http://www.youtube.com/watch?v=MRStwmueeEE
resistance for the gear?
http://www.youtube.com/watch?v=cqaZ0De0V_M
weighted return?
http://www.youtube.com/watch?v=SmMrRU_5MRI

Labels:



http://es.youtube.com/watch?v=qS5zEGKd1bQ


http://es.youtube.com/watch?v=495wYQdmx70


http://es.youtube.com/watch?v=qDyZPnVUMTU


http://es.youtube.com/watch?v=hK4b_OQ5rHw

http://es.youtube.com/watch?v=SV5K0ycmLis


Monday, November 5, 2007

Hypothesis for the Experiment 3





LCD's Sort Circuits




Note in the video that I have to touch both connections for the LCD to turn on.
The resultant image is a checkerboard. I will try to change the LCD’s short Circuits in order to turn on all the pixels.

LCD Module Configuration



Polarizers performance and Chart of colours



http://es.youtube.com/watch?v=ISpsQDgYSz8

Experiment 2

Connection to the microcontroller
http://es.youtube.com/watch?v=c9CyBRzalOI

Experiment 1

Direct connection to the battery
http://es.youtube.com/watch?v=aEE9iYFQdLs

Tuesday, October 30, 2007

Prototype 5 - Team 500s

This output device examines a rotational fan that will animate with minimal movement.

Labels:


The PING 28015


We found this motion sensor and photo sensor, combining two sensors in one.

It can be found on http://www.parallax.com/

Labels:


Monday, October 29, 2007

ELEGON_prototype_05_posting

Team: Anond Adrian Arunsmith, Esther Chu, Gao Tian, Phuttipan Aswakool, Tao Liu

use LIGHT SENSOR
We tested the light sensor we just got. And it worked ok.


Labels:
